Description

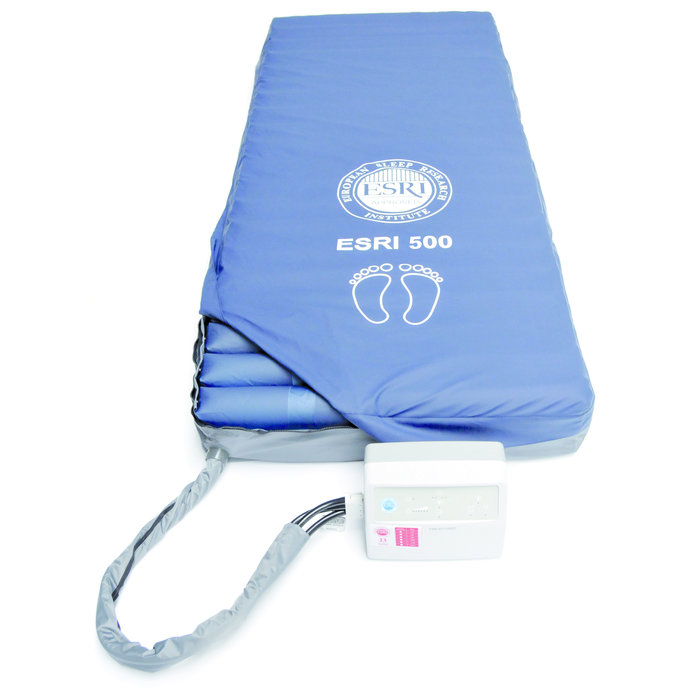

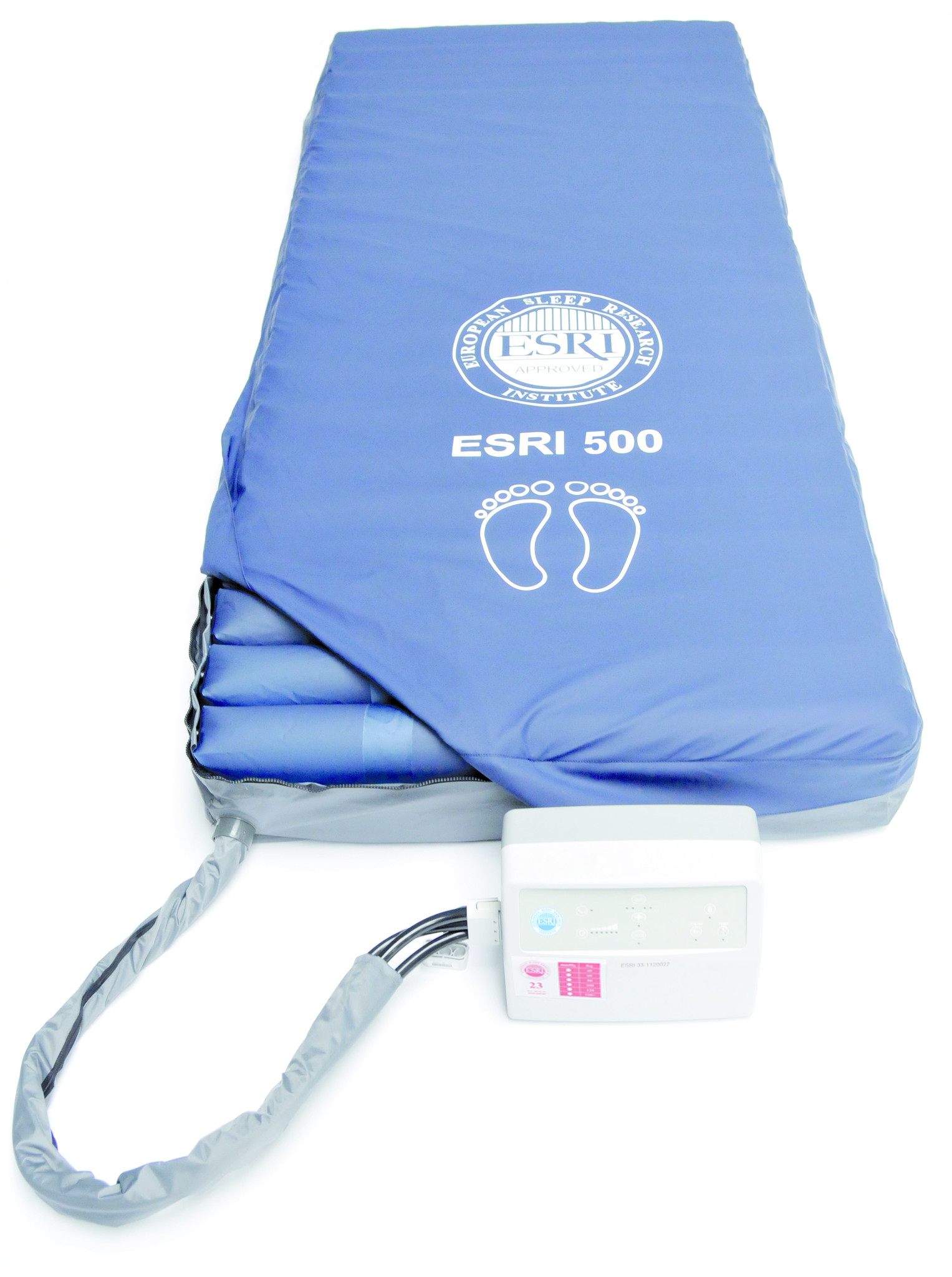

Air2Care-6 the updated version of ESRI 500

TOTAL MATTRESS REPLACEMENT ANTI DECUBITUS SYSTEM

Air2Care 5, 6 and 8

The Air2Care active alternating pressure mattress system with 1 to 2 cell cycle contributes to decubitus prevention in hospitals, long-term and home care. Thanks to the Easy Smart function, the pressure setting for different care recipients is set fully automatically. The advantage is that 4 different alternating cycles can be selected for the individual needs and preferences of each patient.

Air2Care-6 set (pump and mattress) consists of the ERSI500 mattress and Air2Care-6 pump. These are also available separately. (click on the correct variant.)

Technical details:

Alternating Mattress

Made of polyurethane material, constructed from alternating, individually lockable ("floating heels") and interchangeable cells
20 cells thickness 16 cm Quick release for selective closing or replacing air ducts
Dimensions: 200 x 83 x 16 cm thickness
Fireproof, bi-elastic PU cover, waterproof, anti-bacterial and air permeable, zips all the way around the mattress
Washable up to 90°C
CPR valve (resuscitation and complete emptying of air zones)
Up to 250 kg body weight
Transport valve

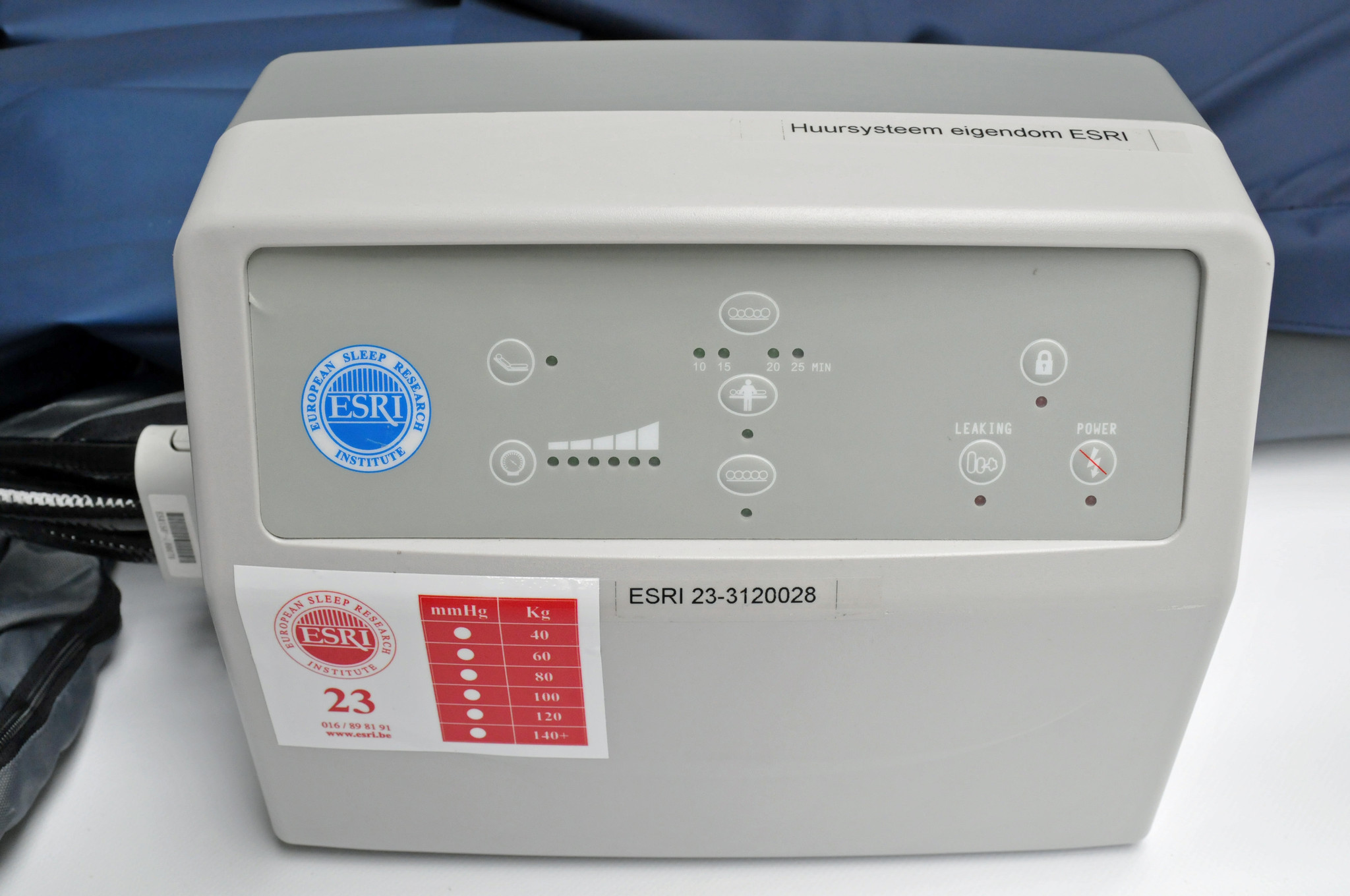

Pump

Digital alternating pump >10 l/min with pressure control, dynamic-static and autofirm function
At low pressure, visual and audible alarm
Semi-autonomous pressure adjustment
Cycle time 10, 15, 20, 25 min. adjustable
Nursing mode quick select switch
Static position quick selector switch
Alarm reset and auto inflation
Warranty after purchase: 2 years
Lock function
Seat function

Your benefits at a glance (some features are optional)

Protection of the skin

Periodic pressure relief
Thanks to the alternating pressure system with 1 in 2 cell cycle, the Air2Care reduces pressure and helps the mattress to minimize long-term pressure peaks on the body.

Local pressure relief
The mattress is constructed from alternating individual lockable and interchangeable cells. This allows pressure to be relieved from specific parts of the body.

Minimal risk of bottoming out while sitting
The Single Fowler boost function automatically detects increased back support.

Safety and comfort

The wide choice of cycle times allows caregivers to find the right balance between periodic pressure relief and comfort for the care recipient.

Cycle time options: 10, 15, 20, 25 minutes

Choose the right cycle length based on the condition of the care recipient and his/her personal preference

Simplicity for care recipients

Effective technology does not have to require complicated installation and operation. The Air2Care 5, 6 and 8 mattresses are easy to operate and feature the Easy Smart automatic pressure adjustment.

Automatic pressure adjustment with the Easy Smart System

The mattress automatically and continuously adjusts to the length, weight and position of the care recipient

Support for use in hospitals

Self-closing valves help maintain pressure so the mattress stays inflated even when a cell is removed for cleaning or repair.

Air2Care 5
Top mattress 12.5 cm with 1 to 2 cell cycle

Safe working load	140 kg
Dimensions	86 × 200 cm
Modes	Alternating, Max, Constant low pressure
Cycle time	10, 15, 20, 25 min
Cells	self-closing valves
Top cover	With PU coating, breathable, bi-elastic
Undercover	Nylon from PVC

Air2Care 6
14 cm mattress replacement system with 1 in 2 cell cycle

Safe working load	160 kg
Dimensions	86cm × 200cm, 90cm × 200cm, 86cm × 210cm, 90cm × 210cm
Modes	Alternating, Max, Constant low pressure
Cycle time	10, 15, 20, 25 min
Cells	self-closing valves
Top cover	With PU coating, breathable, bi-elastic
Undercover	Nylon from PVC

Air2Care 8
20cm mattress replacement system with 1 in 2 cell cycle

Safe working load	180 kg / 250 kg
Available sizes	86cm×200cm, 100×200cm
Modes	Alternating, Max, Constant low pressure
Cycle time	10, 15, 20, 25 min
Cells	self-closing valves
Top cover	With PU coating, breathable, bi-elastic
Undercover	Nylon from PVC

Difference between Air2Care-6 Foam and Air2Care-6 Air:

	Air2Care-6 Foam	Air2Care-6 Air
Maximum user weight	200 kg	250 kg
Number of cells	17	20
Shape cells	Oval	Flattened top and bottom, resulting in more contact with the body surface à greater lying comfort
Bottom (static) base layer	Foam mattress (4cm) in separate foam bag with zipper	No foam mattress but cell-on-cell: airways have 2 separate air chambers. Bottom part is 5 cm and always stays inflated (even in case of breakdown or defect)
