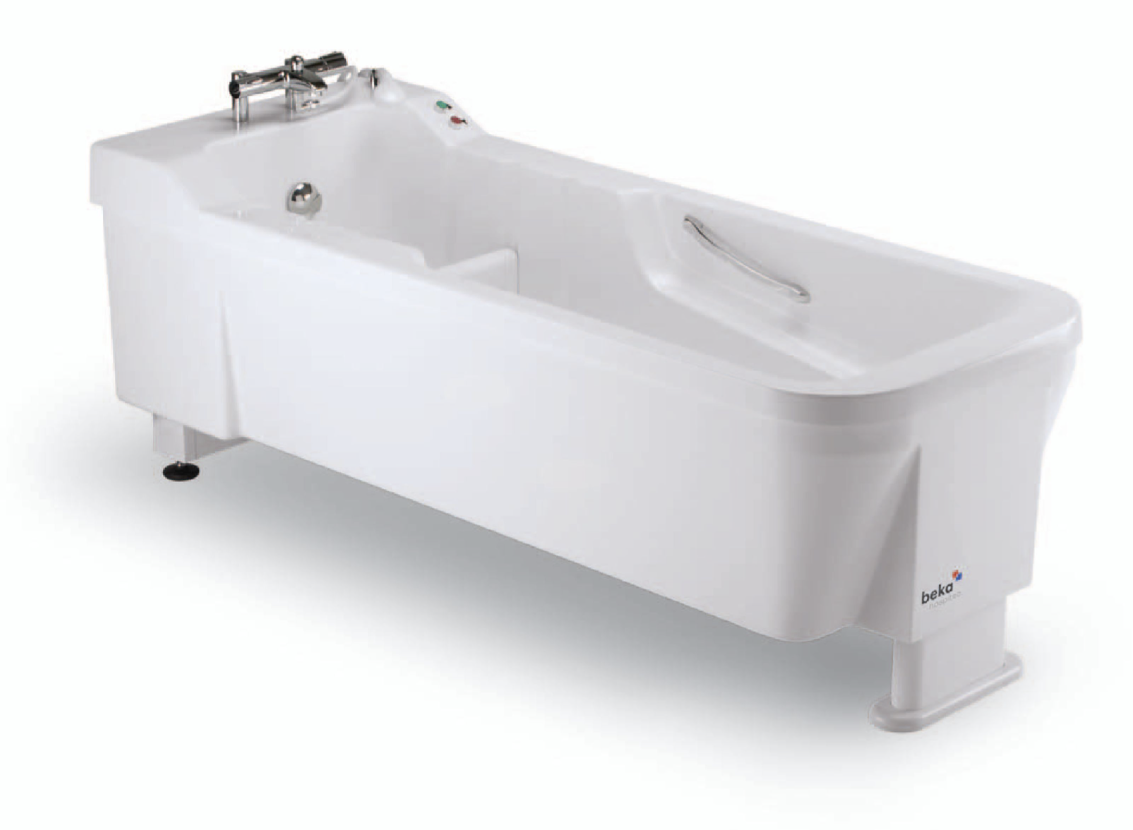

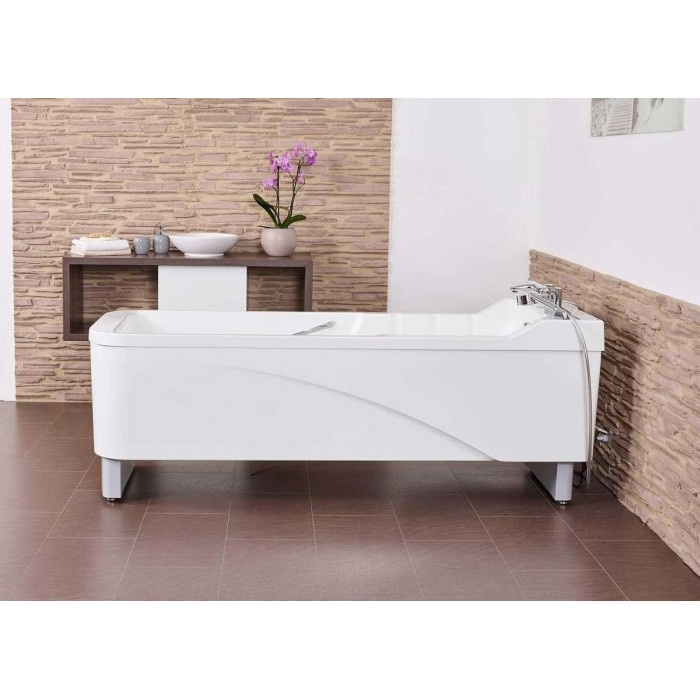

Avero Viva high-low economy bath
Avero Viva high-low bath
• The high-low Viva is an ergonomically shaped care bath made of glass fiber reinforced plastic without a built-on console and with a completely closed outer shell.
• It is powered by two synchronously controlled lifting columns.
• The bath is freely accessible from three sides and is suitable for use in combination with patient lifts.
• The inner shell of the bath is ergonomically shaped and the integrated armrests and contoured backrest offer both safety and comfort.
• The integrated safety handles help with getting in and out.
• The inner shell also contains holders for a bath shortener.
• Incl. eccentric fitting.
• With Grohe Grohtherm 1000 mixer.
• Dimensions, including control console: 202.5 x 80.5 cm
• Internal dimensions of the bath: 170 x 54/66.5 cm
• Height adjustment: 69.5 -109.5cm
• Safe working load SWL: 320 kg
Functional and affordable...
The timeless design of the AVERO VIVA bath is reflected in its design
sleek and simple exterior cladding and elegant and beautiful bathtub.
The ergonomic design of the bathtub offers the resident comfort
height of the shoulders sufficient space and allow the use of
modern bath lifts.
The AVERO VIVA high-low bath is freely wheelchair accessible, so that even in small ones
rooms can be worked with bath lifts without any problems. Armrests
with integrated handles in chrome, adjustable footrests
and a scald-protected thermostat for bath and shower,
ensure the highest comfort and safety while bathing.
The bath is operated using a control foil
the bath with clear symbols.
Full technical description:
Functional high-low bath with flat control panel and
Height adjustable by means of 2 electromechanical motors
from 683mm to 1083mm. The bath is free on 2 sides
wheelchair accessible for bath and hoists and can also be used with the
positioned in the direction of the resident's view of the room
become.
The ergonomically shaped bathtub has dimensions incl.
panel of 2025 x 786 mm. The internal bathtub has a
width at the height of the upper body of 720 mm.
The bathtub is made of glass fiber reinforced pore-free
polyester (GRP). The bathtub can be equipped with one
pillow and an adjustable footrest. Armrests
with handles provide more comfort and safety. It
The bath is equipped with overflow protection.
Standard color is white, special colors are according to RAL table
available in option.
The flat panel made of GRP with a hygienic, pore-free surface
and rounded edges is equipped with a control foil with 7
sensor keys. A remote control, an emergency descender and
automatic water stop are available as an option.
The temperature control for bath and shower is done
manual. The bath is equipped with a ½” thermostat type
Grohe Grotherm 1000 with protection against
combustion. Optionally you can choose one
Grotherm 2000 Special with an automatic thermal
rinse against legionella contamination.
The hand shower is accessible from both sides of it
bath.
The bath can optionally be equipped with wellness
functions, Airspa, Light, Music and Aromatherapy (see page 2)
A disinfection facility is available as an option. It
disinfectant is delivered via an injector and an adjustable
flow meter mixed with water. The plastic
disinfectant container is safe behind a lockable door
stored and has a window for inspection
the filling level. The yellow hand sprayer has a
2000mm long plastic hose.
