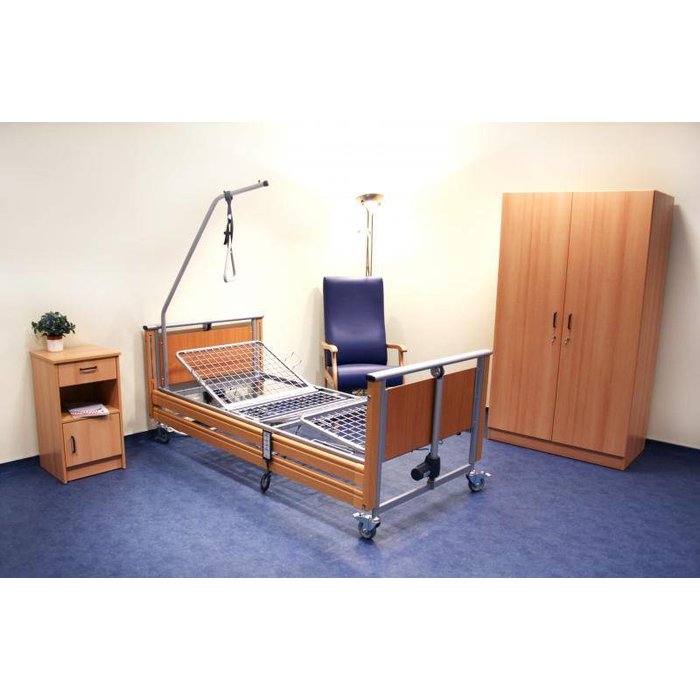

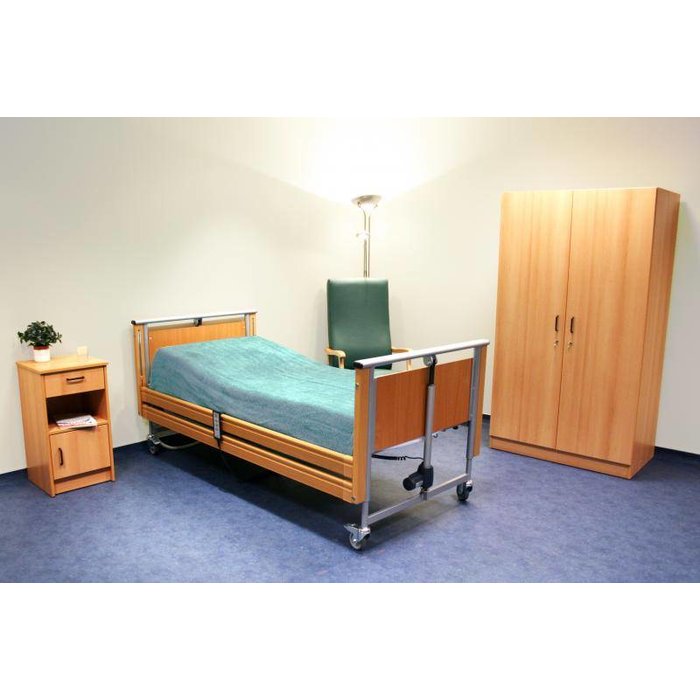

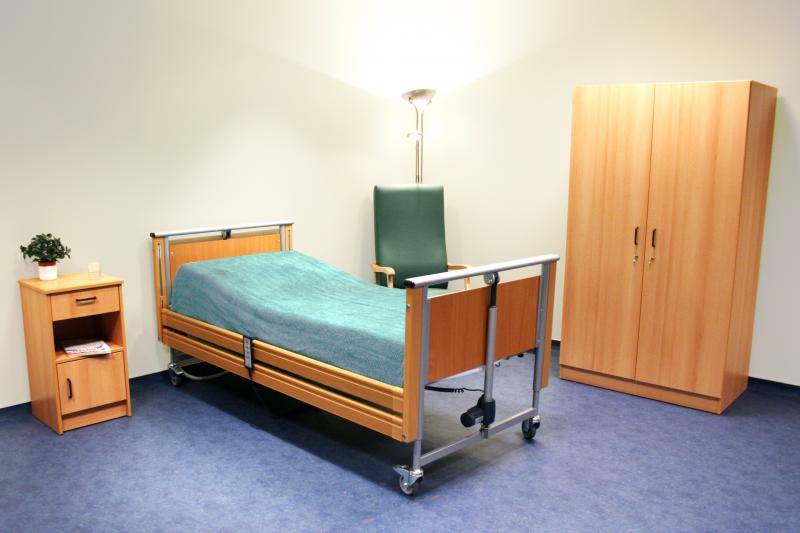

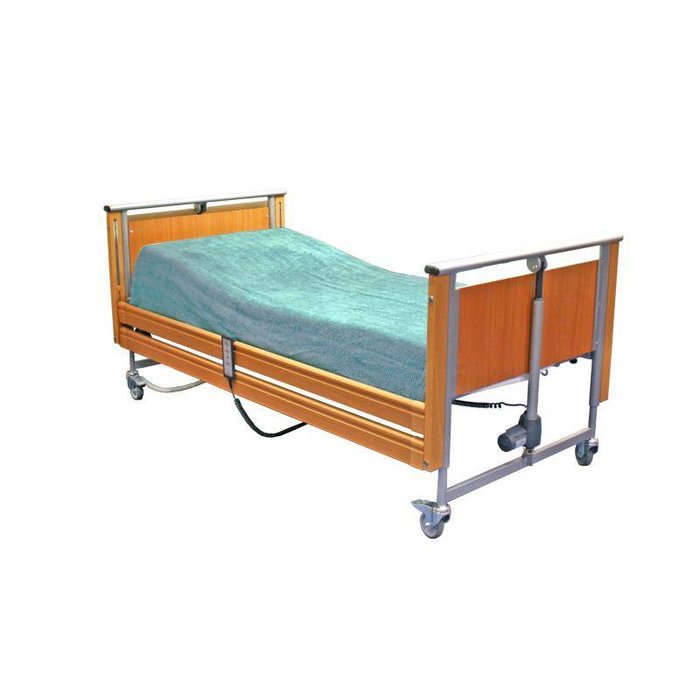

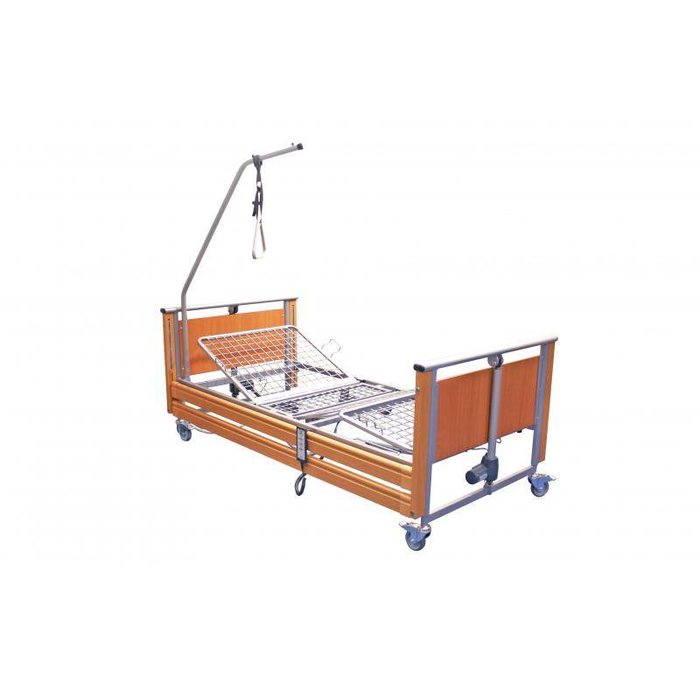

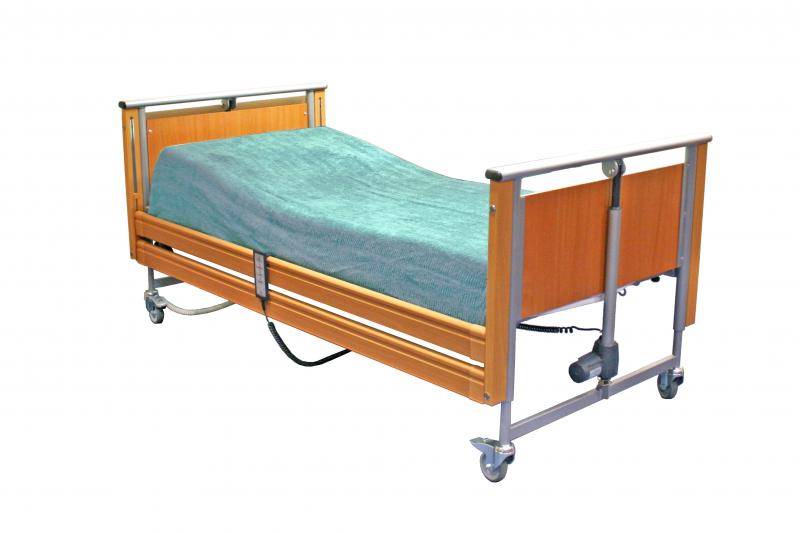

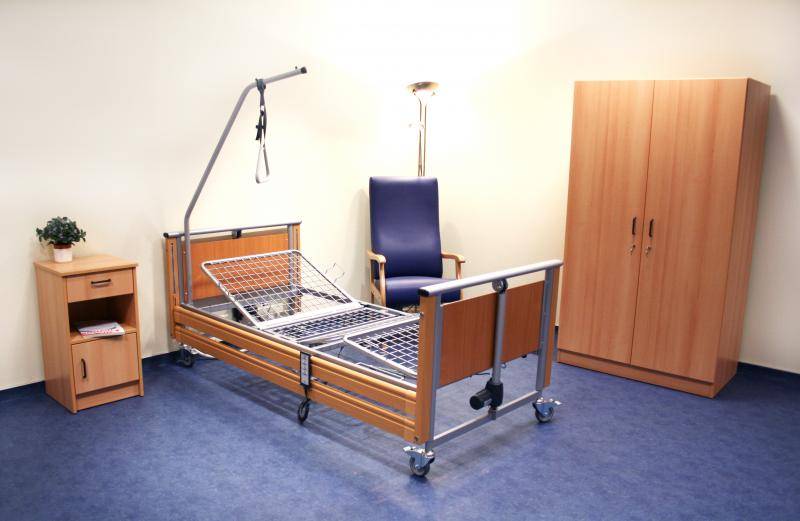

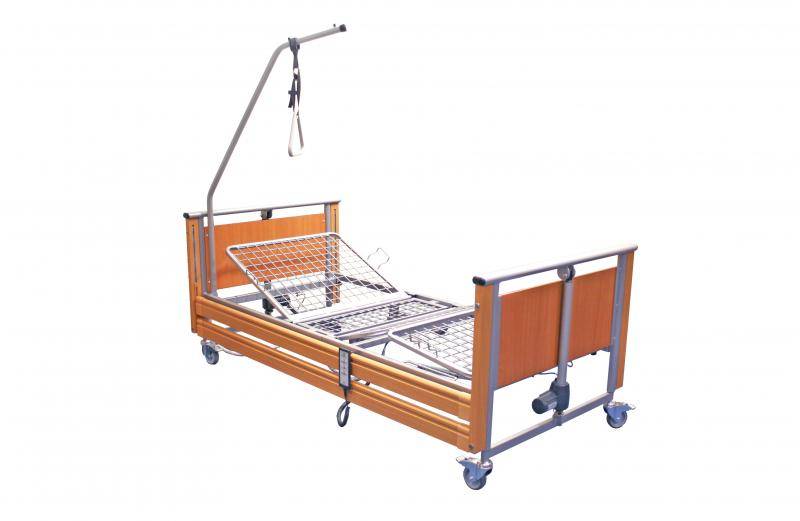

High-low bed BASIC

HEIGHT ADJUSTABLE ELECTRIC BED BASIC 1.

• Electric bed with great stability: the head and foot ends are equipped with 2 metal supports, operated by an electric motor.
• Self-founder in epoxy silver
• 2 lateral supports on each side
• Wooden slatted base
• Panel in melamine beech (9 mm) to cover the motor (patient side)
• Delivered with a transport kit, easy assembly
• 2 sliding lateral supports (L / R).
• Choose here your accompanying mattress

External dimensions: 104.5 x 210.5 cm.

• Adjustable height: from 38 to 78 cm
• 4 rotating wheels Ø 100 mm with independent brake on each wheel.
• 90 x 200 cm slatted frame (provided for a mattress of +/- 85 x 195 x 12 cm)
• Panels of head and foot:
  - made of solid beech, varnished, with rounded corners
  - 1 melamine beech panel (9 mm) to cover the motor (patient side).
• Delivered with manual operation: easy to use for patient and nursing staff.

Manual operation with the following functions:
- Headboard adjustment from 0 ° to 70 °
- General height control
- Adjustment of the foot end from 0 ° to 20 °
- Simultaneous regulation of head and foot end
- Proclive arrangement (Declive arrangement not possible).

All these functions can be blocked individually with the help of a plastic key (if lost, a new one is supplied free of charge).

• Low voltage motor 24V: LINAK
• Maximum capacity: 175 kg
• Linak engines with CE guarantee.
• Complies with the IEC 60601-2-52 standard.
• Choose here your accompanying mattress

HEIGHT ADJUSTABLE ELECTRIC BED BASIC 2.

• Electric bed with great stability: the head and foot ends are equipped with 2 metal supports, operated by an electric motor.
• Self-founder in epoxy silver
• 2 lateral supports on each side
• Panel in melamine beech (9 mm) to cover the motor (patient side)
• Delivered with a transport kit, easy assembly
• 2 sliding lateral supports (L / R).
• Choose here your accompanying mattress

External dimensions: 104.5 x 210.5 cm.

• Adjustable height: from 38 to 78 cm
• 4 rotating wheels Ø 100 mm with independent brake on each wheel.
• 90 x 200 cm slatted frame (provided for a mattress of +/- 85 x 195 x 12 cm)
• Panels of head and foot:
  - made of solid beech, varnished, with rounded corners
  - 1 melamine beech panel (9 mm) to cover the motor (patient side).
• Delivered with manual operation: easy to use for patient and nursing staff.

Manual operation with the following functions:
- Headboard adjustment from 0 ° to 70 °
- General height control
- Adjustment of the foot end from 0 ° to 20 °
- Simultaneous regulation of head and foot end
- Proclive arrangement (Declive arrangement not possible).


All these functions can be blocked individually with the help of a plastic key (if lost, a new one is supplied free of charge).

• Low voltage motor 24V: LINAK
• Maximum capacity: 175 kg
• Linak engines with CE guarantee.
• Complies with the IEC 60601-2-52 standard.
• Slatted metal slatted base
• Choose here your accompanying mattress
