Description

MEASURE MUSCLE STRENGTH QUICKLY AND ACCURATELY WITH MUSTEC HD The MusTec HD* muscle strength meter is an accurate hand-held dynamometer that measures, stores and displays the peak force and duration of a muscle contraction.

FOLLOW UP YOUR PATIENT WITH OBJECTIVE DATA

Measuring muscle function in patients is crucial for making the correct diagnosis and monitoring progression of neuromuscular and musculoskeletal disorders.

The MusTec HD is used by most users as a "stand alone" device, you can read the measurement results directly on the display of the device. However, the Mustec HD is also equipped with a Bluetooth function. This makes it possible to connect to a computer via a special USB dongle and to exchange data with the free optional MusTec HD software program. (Windows 7, 10 and higher, modern Macs and iPads) The MusTec Software can be downloaded from http://www.Mustec.app

MEASUREMENT PROCEDURE

select the muscle group to be measured.
choose the break or make test.
perform the measurement three times.
Read the measurement result immediately after each test or connect your MusTec HD device to the MusTec software.
wireless connection via bluetooth connection version 4.0.
software program enables real-time feedback and analysis of the data.
the measured isometric muscle strength is the average strength of the three measurements.

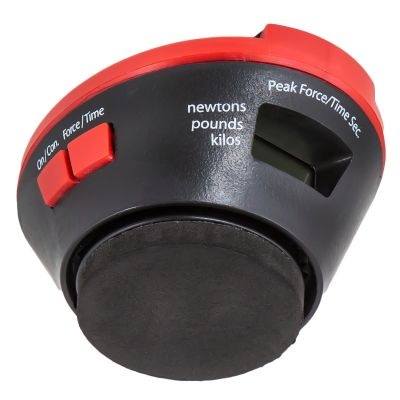

MUSTEC HD MUSCLE STRENGTH METER FEATURES

only two control buttons + display.
units of measurement: Kilogram, Newton and Pound + time in seconds.
Measuring range: 0.1 to 130 kg in 0.1 kg increments.
measurement accuracy: > 99%.
patented ergonomic shape adapted to the shape of your hand for extra comfort.
optimal grip thanks to the hand fixation strap.
automatically switches off after 120 seconds.

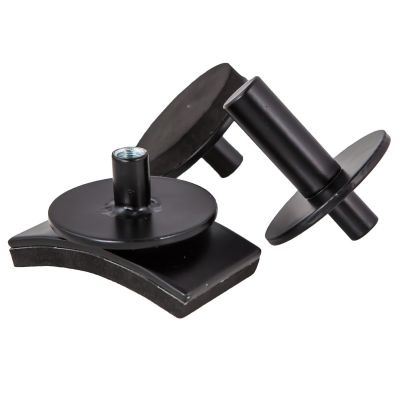

ATTACHMENTS

round flat attachment.
trigger point attachment.
large curved attachment.

SMART SOFTWARE WITH YOUR DYNAMOMETER Your help during measuring for real-time feedback of the power curve.

Easily create and print reports and analyses.
patient database: address, gender, age, weight, patient number, insurance number, treatment date, practitioner, comments, etc.
The search function makes it easy to find your patient.
more than 50 test protocols: both upper and lower limb.
ability to add your own protocols.
comparison with standard values: taking into account age, weight, dominant side and body length.
comparison of maximum and average peak force.
left and right comparison, over time or between different persons and progress graphs.
Exportable data: easily download your patient data so you can easily share it with the doctor or patient themselves.
always up to date: free software updates, without loss of valuable data.
the software speaks your language: Dutch, English or French.
data integration.

DIFFERENCE WITH EXISTING STANDARD FOR FORCE MEASUREMENT

oval shape fits better in the hand.
suitable for smaller palms.
easier operation of the buttons as the fingers are free.
Bluetooth connection allowing fast connection with software (real-time).
1 screen instead of 2.
combination buttons.
audio signal at peak power via software.
calibration document available.
lighter: 250 g instead of 450 g.
modern design.
medically certified CE label.

MAINTENANCE AND CLEANING

clean with a slightly damp cloth and liquid cleaning agent (no abrasives or alcohol).

TECHNICAL SPECIFICATIONS

Dimensions: 10 x 7.5 x 4.5 cm without attachment.
weight: 250 g.
Batteries: 2 x ½ AA, Saft type LS4250, 3.6 V Lithium Battery included.

Medical CE certification class 1: Council Directive 93/42/EEC concerning medical devices. *(MusTec HD stands for Muscle Technology Handheld Dynamometer and was previously distributed under the name BioFet)

MusTec HD - hand-held muscle strength dynamometer - Bluetooth
