Anti-decubitus alternating pressure wheelchair cushion
Not satisfied, money back
Higly recommanded afterservice
Free shipping and return from €60
Ordered before 3 pm, delivered tomorrow
30 days to change your mind
Pay later with Klarna
Description
Read moreRead less

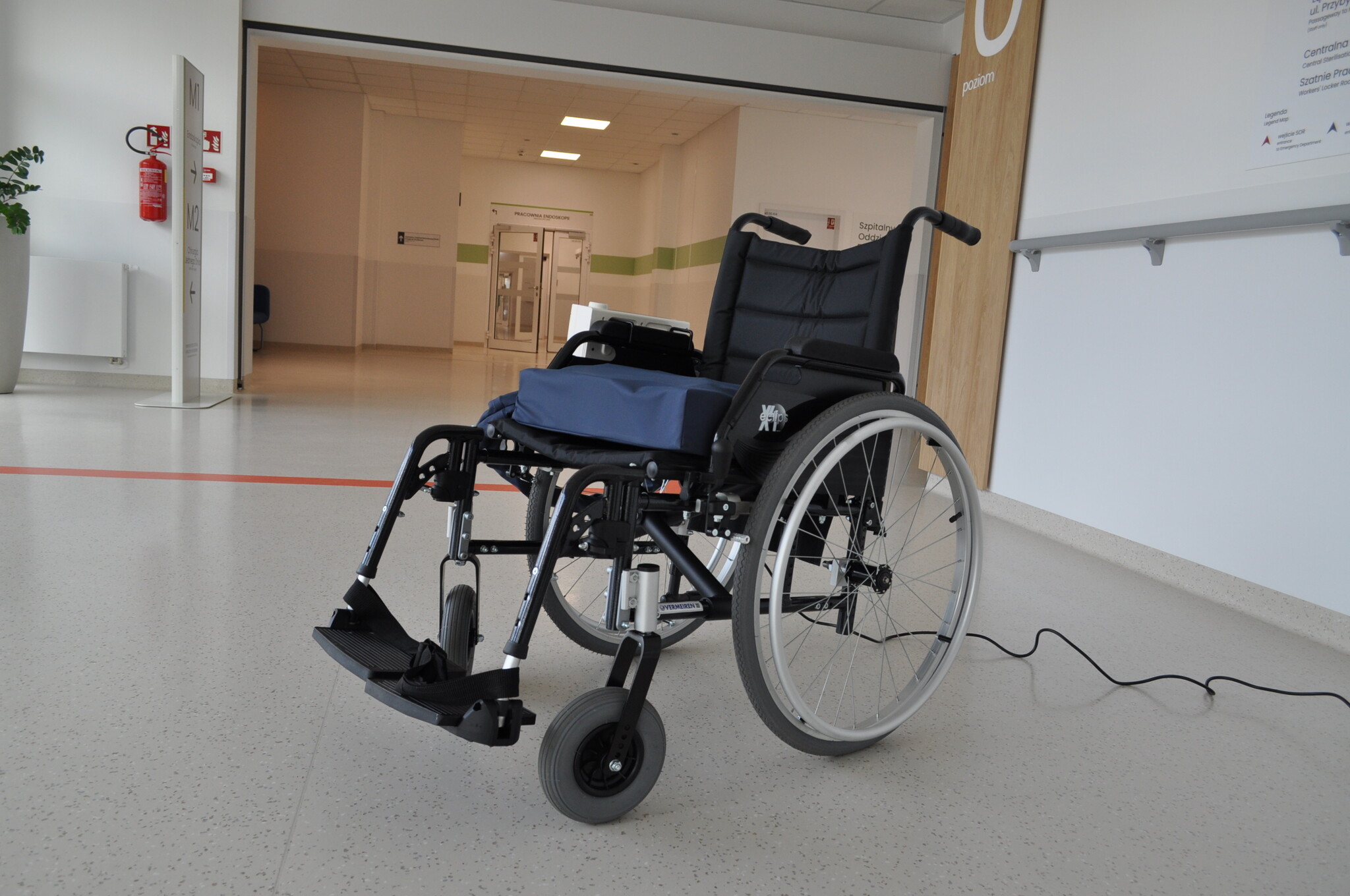

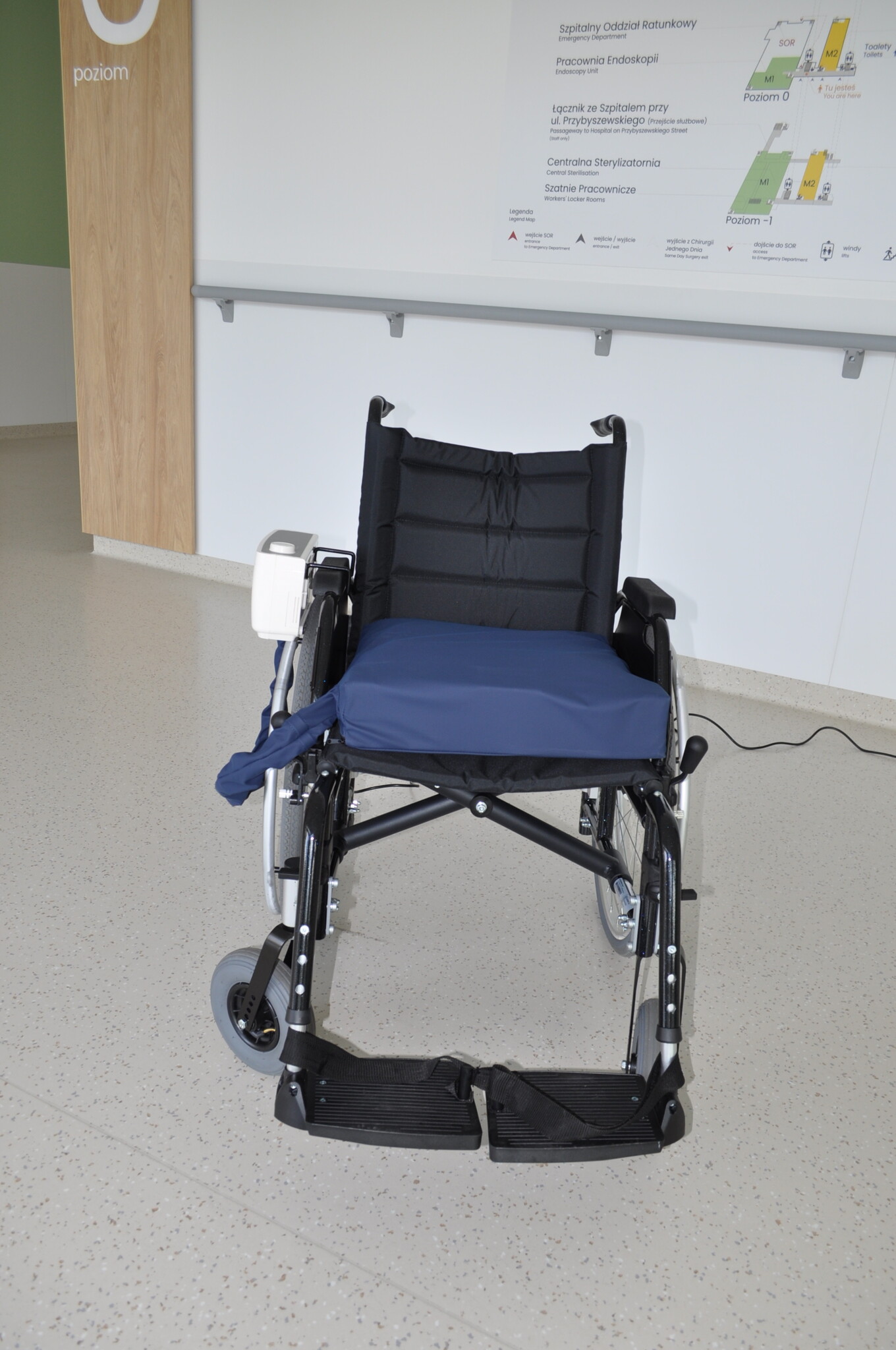

This alternating air cushion can be used in a wheelchair.

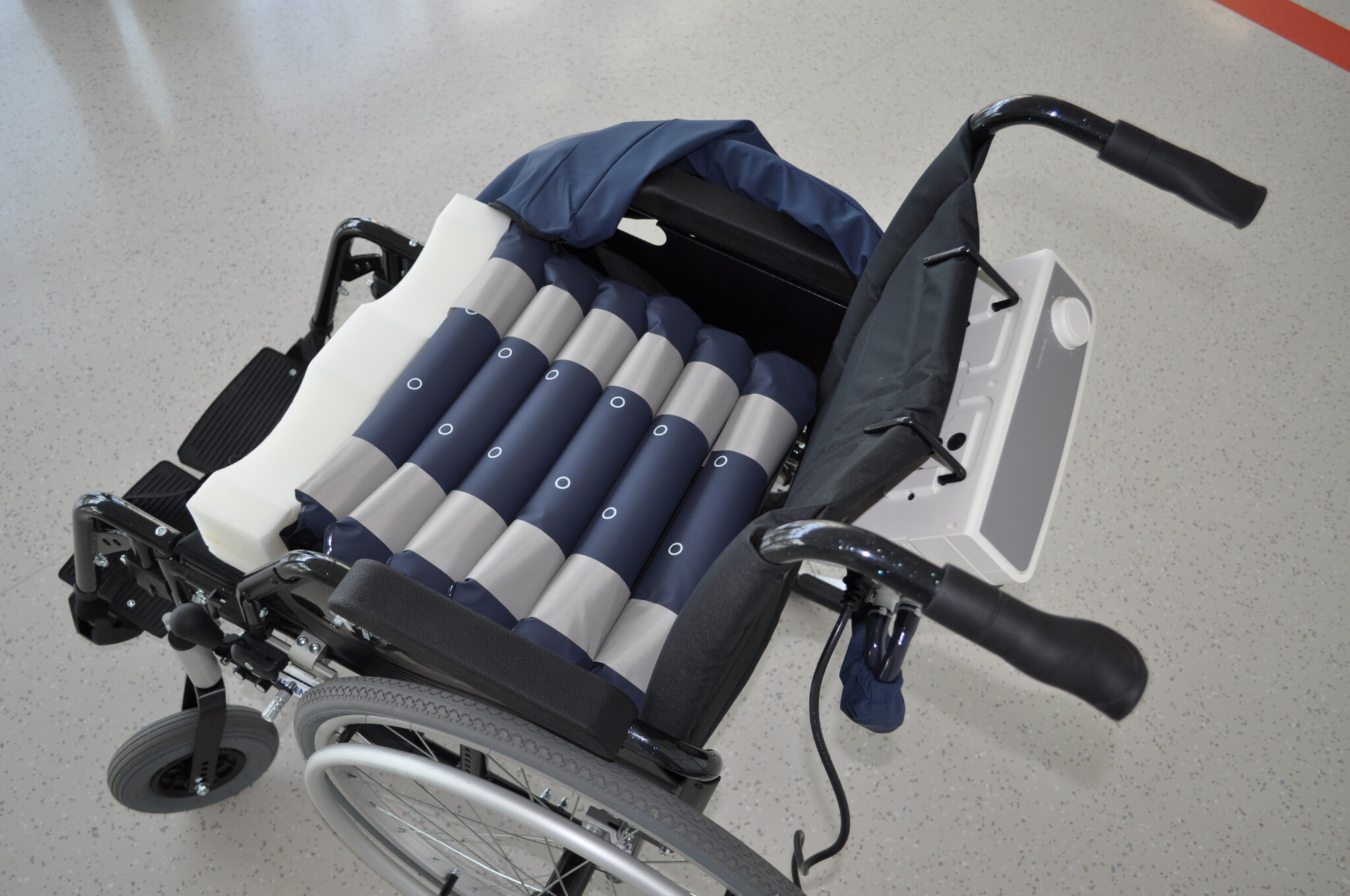

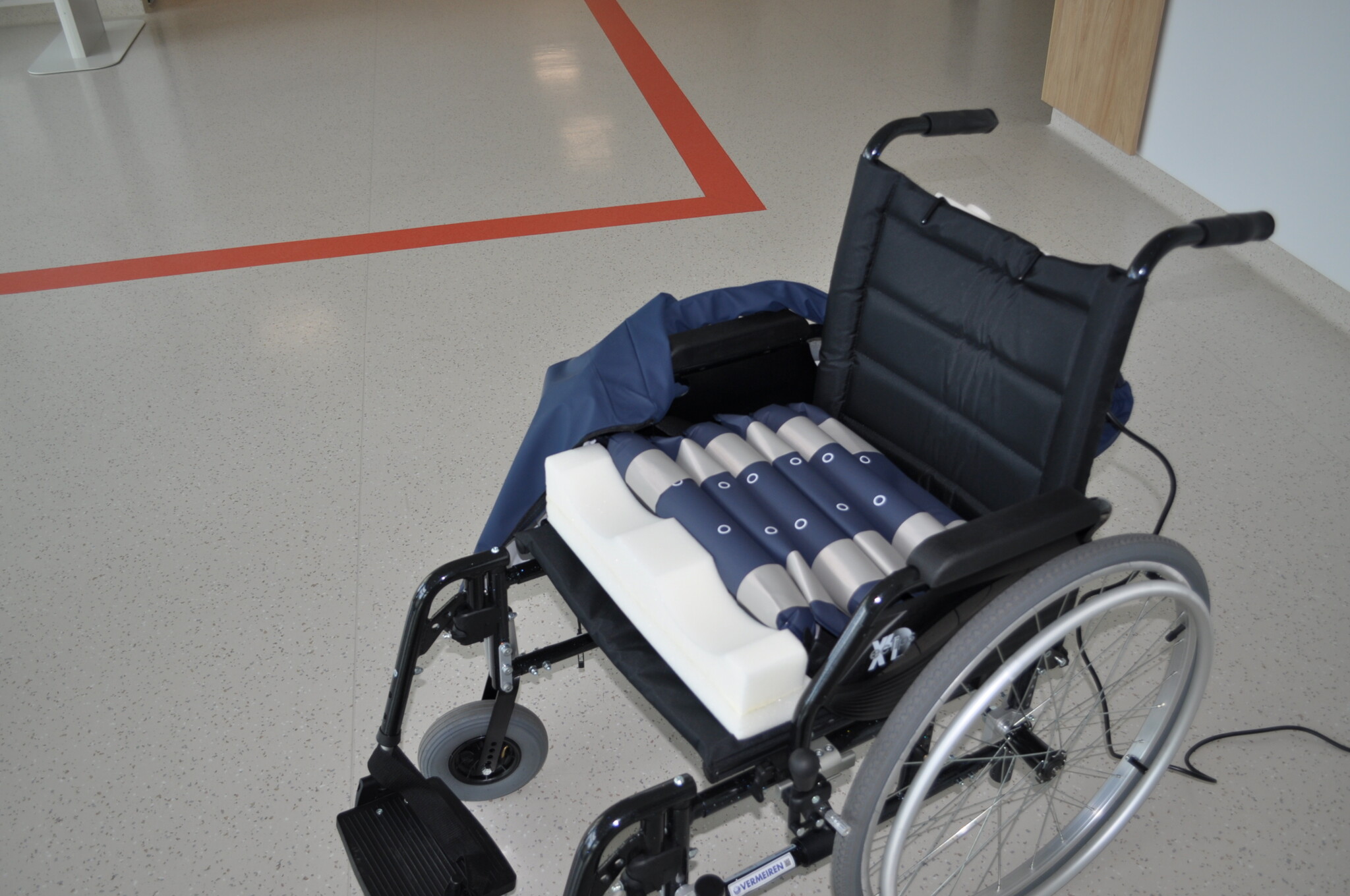

- The 6 air cells are made of polyurethane material and work via a 2-way system,

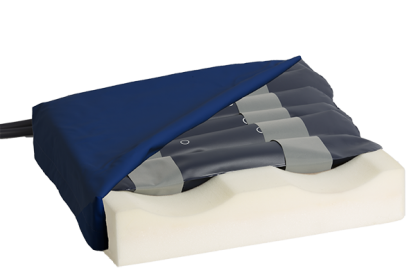

which ensures a good pressure distribution. - The cells are placed on an anatomically padded foam cushion.
- The cover is made of a polyurethane stretch material.
- This cushion is used in combination with the air pump ST160 (pump that is connected to the power network).
- Pressure ulcer level 1-2-3
- User weight: 120 kg
This anti-decubitus alternating pressure wheelchair cushion works with an alternating pump to relieve the buttocks. The medical analog pump is quiet and has easy-to-use CPC connectors.
This product can be added to an existing mattress system to provide 24 hours if the user is moved to a chair.
User weight <120 kg
- 43 x 43 x 10 cm
- Including manual pump (ST160): This is a pump that is connected to the power network.
Extra information about the ST160 pump:
- This air alternating pressure system is indicated for the prevention and treatment of skin breakdown and pressure ulcers in moderate to high risk patients (prevention of treatment for stage 1 to 3 ulcers).
- Cyclic pressure change prevents arterial and venous capillary occlusion in
the surface tissue of the patient that maintains and stimulates blood flow and
lymph fluids through these tissues to provide and remove essential oxygen
metabolic waste products - The ST160 (TS105) alternating pressure pump continuously blows air into the air cells "A" and "B". In this way the pressure of the patient is relieved and blood circulation is stimulated which effectively prevent pressure ulcers.

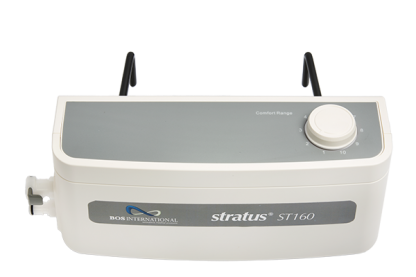

- Pump: ST160 (TS105)
- Input: AC220-240V, 50Hz (Or AC100-120V, 60Hz)
- Frequency: 50Hz or 60Hz
- The air pump ST160 (TS105) is easy to use due to the comfort level adjustment knob and is designed to cause as little noise as possible.
- The rounded corners are designed for safety reasons and the mounting hooks on the
back the most space - Technical specification of the pump ST160 (TS105)
- INPUT: AC220-240v-50Hz (or AC100-120V, 60 Hz)
- POWER CONSUMPTION 10W max
- AIR OUTPUT: 8 liters (approx)
- FUSE RATING: T1al / 250V
- PRESSURE ADJUSTED: NO
- METAL CONNECTORS: YES
- DIMENSION: L26 cm * W8cm * H13cm
- WEIGHT: 1.5 KG (approx)
- CLASS: Class 1, Type BF
Pressure setting ST160 (TS105) pump
10 | 120 |
9 | 110 |
8 | 100 |
7 | 90 |
6 | 80 |
5 | 70 |
4 | 60 |
3 | 50 |
2 | 40 |
1 | 30 |
Knob number | Kg |
